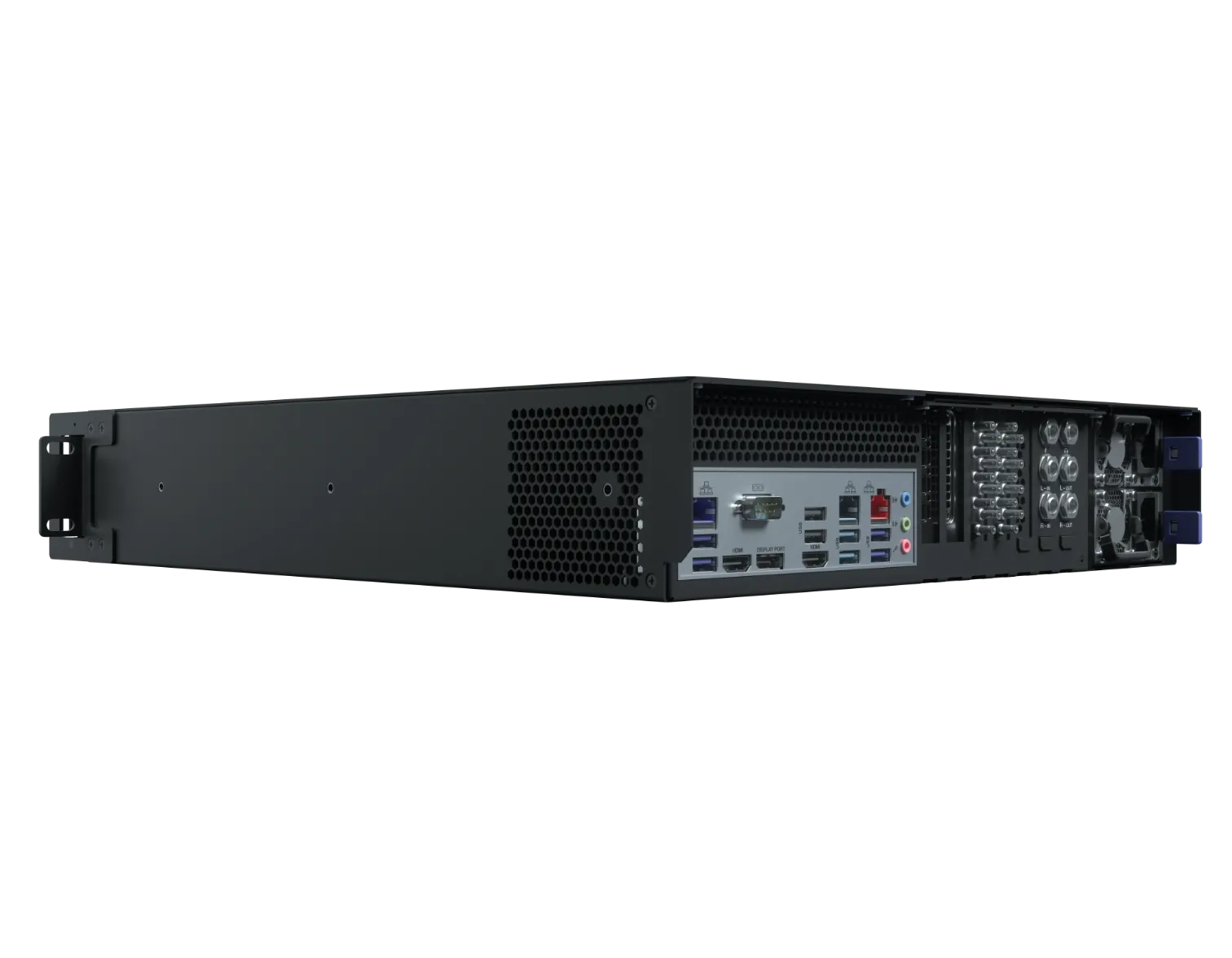

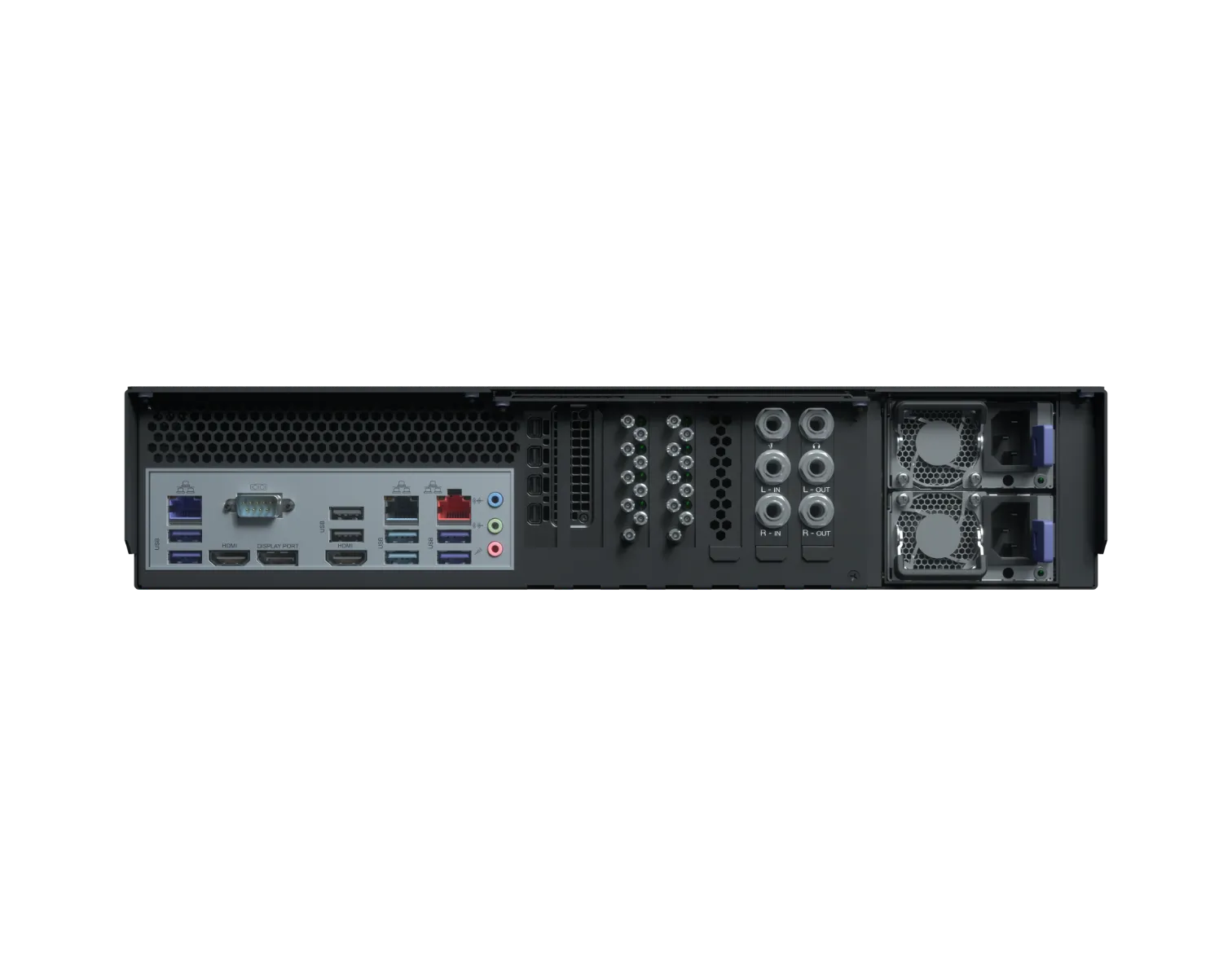

Tricaster Vizion
Vizionary video production with unprecedented versatility. TriCaster Vizion is the most advanced TriCaster yet
Supplied with:
Compatible with:
Tricaster Vizion
for hire
Vizionary video production with unprecedented versatility. TriCaster Vizion is the most advanced TriCaster yet
Specifications
Specifications
- Video Input 44 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to UHD at frame rates up to 60fps (2160p 59.94)
- Network Video Input 44 x IP inputs via NDI®, resolution-independent, with support for key and fill
- SDI Video Input 12G/3G/HD SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates2 • 2160p 59.94, 50, 29.97, 25 • 1080p: 59.94, 50, 29.97, 25 • 1080i: 59.94, 50 • 720p: 59.94, 29.97, 25 Up to 16 configurable ports depending on hardware version. These ports can be configured for input or output. Up to 8 ports support 12G signals. Available frame rates determined by session video standard (NTSC or PAL)
- Video Output Configurable for up to 8 independent HD or 2 UHD video mix outputs, with simultaneous delivery via IP and SDI
- Network Video Output 56 x IP outputs via NDI® (HD sessions only) • 8 x video mix outputs in resolutions up to 1080p at frame rates up to 60fps (1080p 59.94) or 2 x UHD video mix outputs at up to 60 frames per second (2160p 59.94) • Up to 16 x direct IP source outputs via NDI® translation of local SDI inputs • 4 x direct IP source outputs via NDI® translation of media players, with support for embedded alpha channel • 15 x direct IP source outputs via NDI® translation of media buffers, with support for embedded alpha channel • 3x Multiviewer outputs (if 3 monitors are connected). 4K support on 2x Multiviewer outputs while the 3rd outputs in HD • 1x User Interface with dedicated multiviewer • 1x teleprompter output (LiveStory™ Creator) • 8 x selectable IP outputs via internal NDI® matrix router
- SDI Video Output 12G/3G/HD SDI connections, optionally configurable for: • 8 x independent 12G/3G/HD video mix outputs supporting standard NTSC and PAL formats, resolutions, and frame rates3
- For full specification click link on right
