Newtek Connect Spark (SDI)
NDI Video over IP
Whenever, wherever you need to get a video signal from here to there, Connect Spark is the fastest, easiest way to get it done. Just connect your device and like magic it appears on your network and is accessible to show and share.
Deliver live video through Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and others.

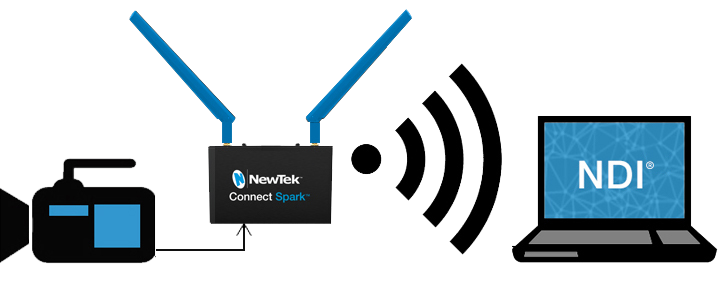

Simply connect your camera or other SDI video output to NewTek Connect Spark, and have it instantly available as a source for other NDI compatible systems and software on your network.
- Wi-Fi portability
- Direct recording
- Tally light
- Multi-Cam virtual PTZ
- Multicast mode
- Network visibility
- Eliminates the usual set-up hassles and expenses.
NDIHx Wi-Fi Transmitter to deliver any source to your network instantly.
- Input: 1 x 3G/HD/SD-SDI
- Audio: SDI embedded
3.5mm Line Level
- Encoding: NDI|HX
- Formats: 1080p: 59.94, 50, 29.97, 25, 24, 23.98
720p: 59.94, 50, 29.97, 25, 24, 23.98
- Standards: SDI: SMPTE ST-424M, ST-292M
- Recording: MPEG-TS with AAC Audio (to USB or Micro SD card)
- Tally: Tally support via NDI, with built-in program/preview tally lights
- Ethernet: 1 x RJ-45 port for 10/100 M Ethernet networking
- Wireless: Built-in WiFi radio
2 x 5db 2.4G/5.8G dual-band antennas
IEEE 802.11 a/b/g/n
- Interface: Web-based user interface for configuration and monitoring
- Weight: 0.22 kg
- Size (mm): 127 x 108 x 28 (w x h x d)
