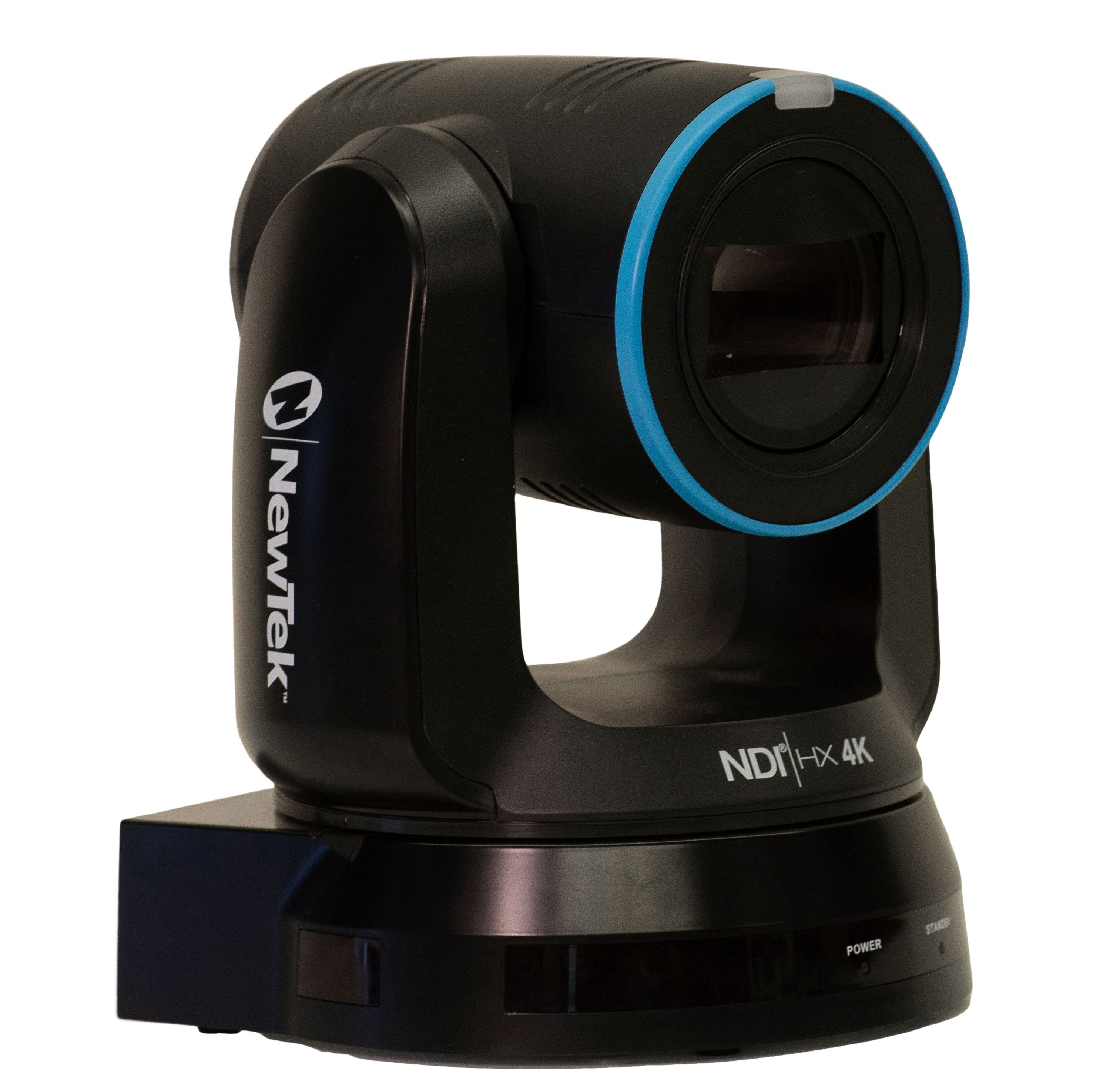

Newtek NDI® PTZ3UHD Camera
The world’s first NDI®|HX PTZ camera with Ultra High Definition (UHD) video.
Supplied with:
Compatible with:
Newtek NDI® PTZ3UHD Camera
Continuing in the tradition of creating innovative digital media production components, NewTek PTZUHD is the first IP-based camera that delivers full UHD video at up to 60 frames per second directly to NDI-compatible systems. As a software driven component with application integration, PTZUHD enhances live production requirements including lecture capture, videoconferencing, and more for today and tomorrow.
The world’s first NDI®|HX PTZ camera with Ultra High Definition (UHD) video.
Specifications
Specifications
- Video / Audio Output: NDI®|HX
- Video Formats: 2160p: 59.94, 50, 29.97, 25 1080p:59.94, 50, 29.97, 25, 50 720p: 59.94, 50
- Zoom: 30x Optical
- Sensor: 1/1.8" 8MP CMOS
- Shutter Speed: 1/1 to 1/10,000 sec
- Panning Angle: -170° to +170°
- Panning Speed: Max 100°/sec
- Tilting Angle: 30° to +90°
- Tilting Speed: Max 100°/sec
- Audio Input: 3.5mm stereo audio input (line)
- Tally: support via NDI® HX
- User Interface: Web based or NewTek NDI® Studio Monitor application for remote configuration, control, and monitoring
- Control: NDI®|HX, RS-232
- Networking: 10/100 Mb Ethernet
- Power: Power over Ethernet (IEEE 802.3at) or fixed power supply
- Physical Dimensions: W/o Hood 6.8 x 7.3 x 7.3 in (174 x 185.5 x 186.1 mm)With Hood 6.8 x 7.3 x 8.3 in (174 x 185.5 x 211.9)Weight: 4.0 lbs (1.82 kg)
- Horizontal Viewing Angle: Approx (Wide) 63°
- Aperture: F1.55 ~ F4.8
- Focal Length: (Tele) 6.5mm ~ 202mm F1.55 ~ F4.8 is the aperture
- Min. Object Distance: 1.5m (Wide/Tele)
- Video S/N Ratio: > 50dB
- Min. Illumination: 0.05 lux (F1.55, 50IRE, 30fps)
- Gain Control: Auto, Manual
- White Balance: Auto, Manual
- Exposure Control: Auto , Manual
- Focus System: Auto, Manual
