Blackmagic ATEM Mini Pro ISO Switcher and Camera package

Blackmagic ATEM Mini Pro ISO Switcher and Camera package

Daily Rate:
£
400
Sale:
£
400
£
300

Contact us

Blackmagic Mini Pro ISO Switcher with 4 PXW70 cameras, Tripods and cables.

Price reduced until May 2021

Supplied with:
Compatible with:
  • 1x Monitor
  • 1x Blackmagic ATEM Mini Pro ISO
  • 4x PXW70's (HD or 4K)
  • 4x Tripods
  • 4x 10m HDMI's

Blackmagic ATEM Mini Pro ISO Switcher and Camera package

 for hire

PXW70, Sony, BM, Blackmagic, ATEM, Mini, ISO

Reach your audience:

  • A complete kit consisting of a Black Magic Mini ISO switcher with 4 x PXW70 HD/4k cameras.
  • Features miniaturized control panel based design.
  • Built in support for recording each input as a separate ISO file (own drive required)
  • Saves DaVinci Resolve project file for 1 click editing of live production.
  • Supports connecting up to 4 cameras or computers.
  • Live streaming via Ethernet supported on ATEM Mini Pro.
  • USB output operates as a webcam and supports all video software.
  • Automatically standards converts and re-syncs all HDMI inputs.
  • Includes free ATEM Software Control for Mac and Windows.
  • Internal media for 20 RGBA graphics for titles, opening plates and logos.
  • Includes ATEM Advanced Chroma Key for green/blue screen work.
  • Multiview allows monitoring of all cameras on ATEM Mini Pro.
  • Audio mixer supports limiter, compressor, 6 band EQ and more!

Blackmagic Mini Pro ISO Switcher with 4 PXW70 cameras, Tripods and cables.

Specifications

Specifications

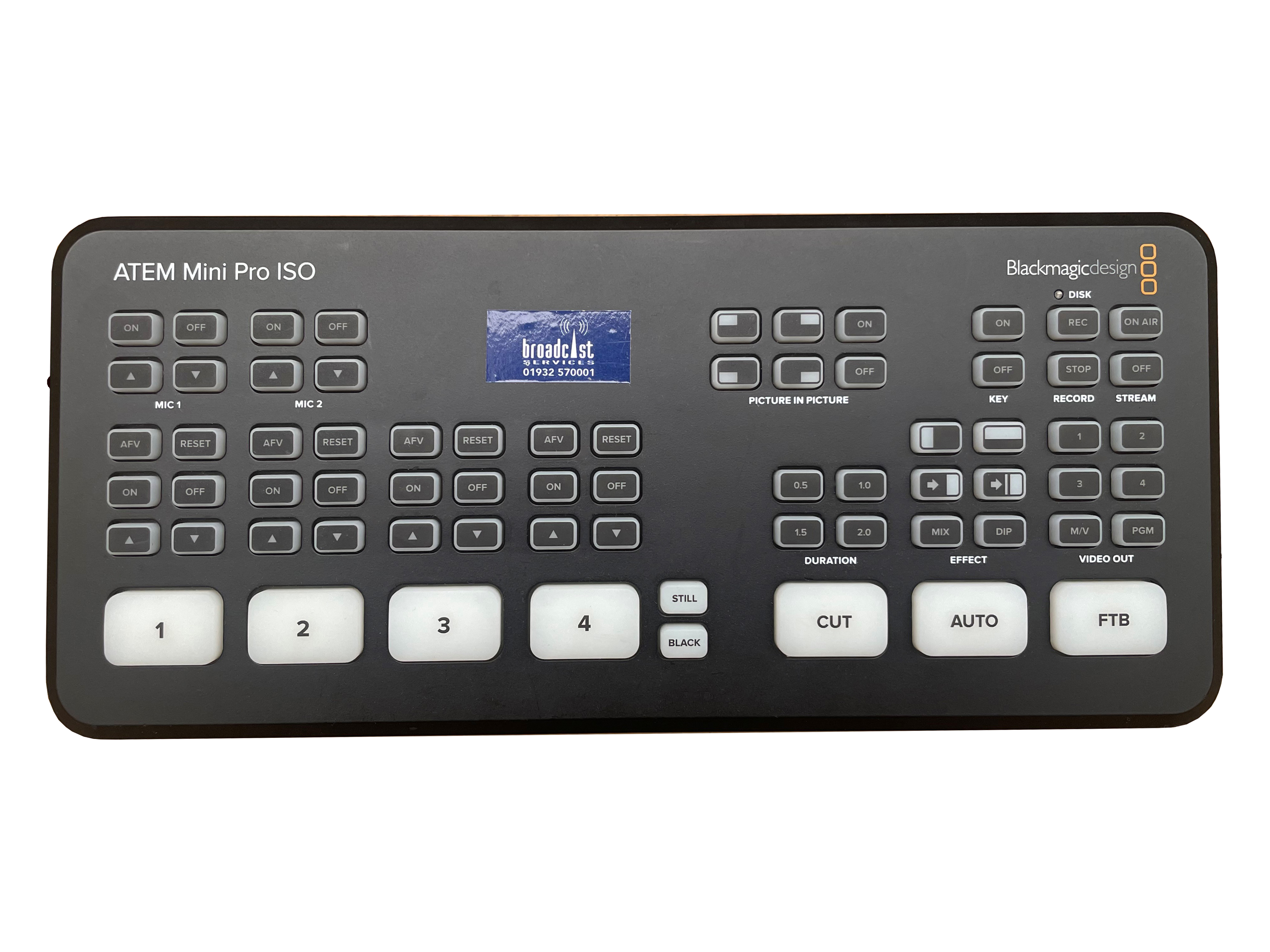

Blackmagic ATEM Mini Pro ISO Specification

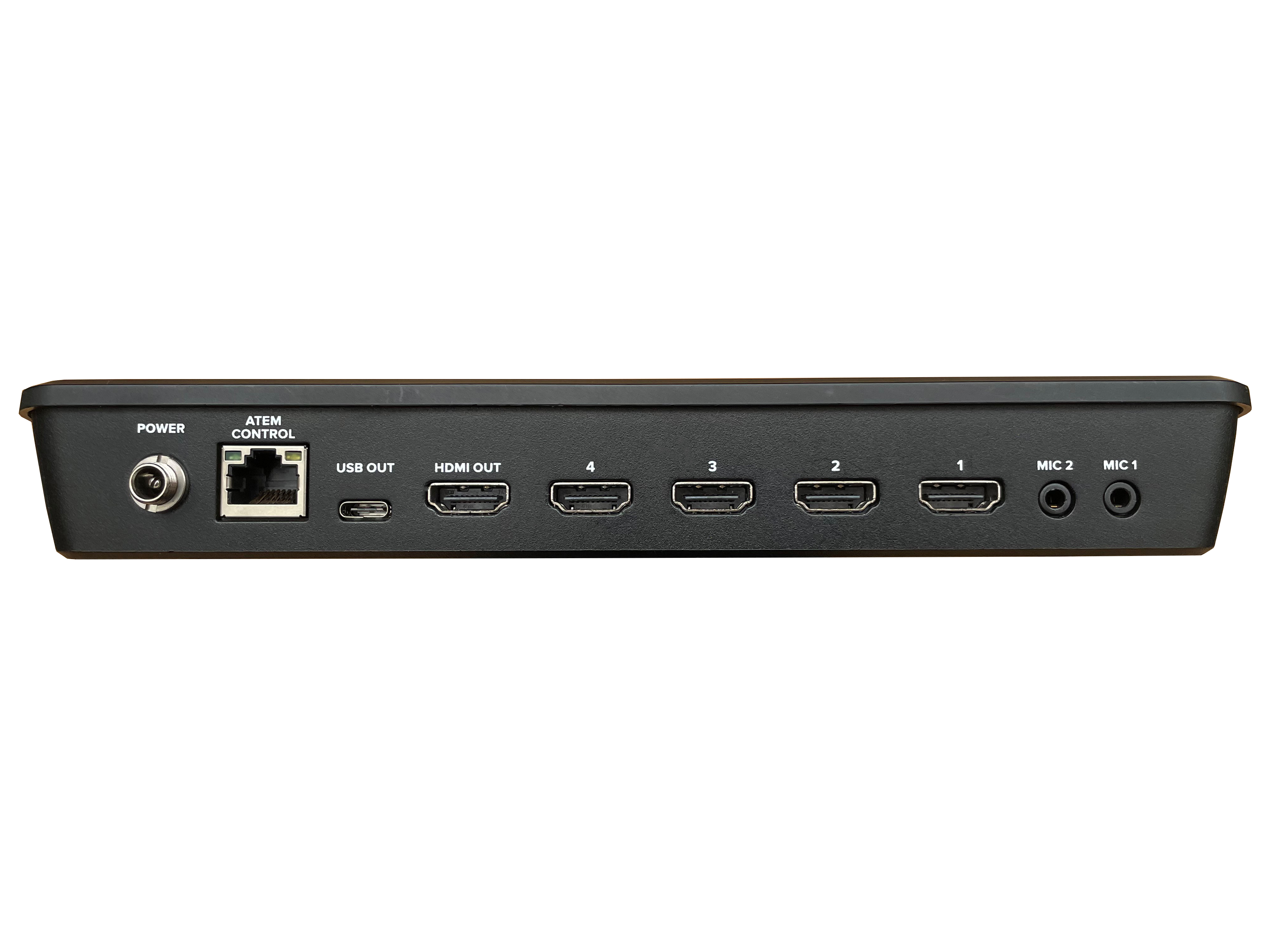

  • Video Inputs: 4 x HDMI inputs, 10-bit HD switchable with 2 channel embedded audio
  • Video Outputs: 1 x HDMI and 1x USB C out
  • Audio Inputs: 2 x 3.5mm Stereo mini jack inputs
  • Audio Outputs: Embedded audio only and Aux output
  • Multiview function: available
  • Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
  • Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
  • Dimensions: 10.35 x 23.75 x 3.5 cm

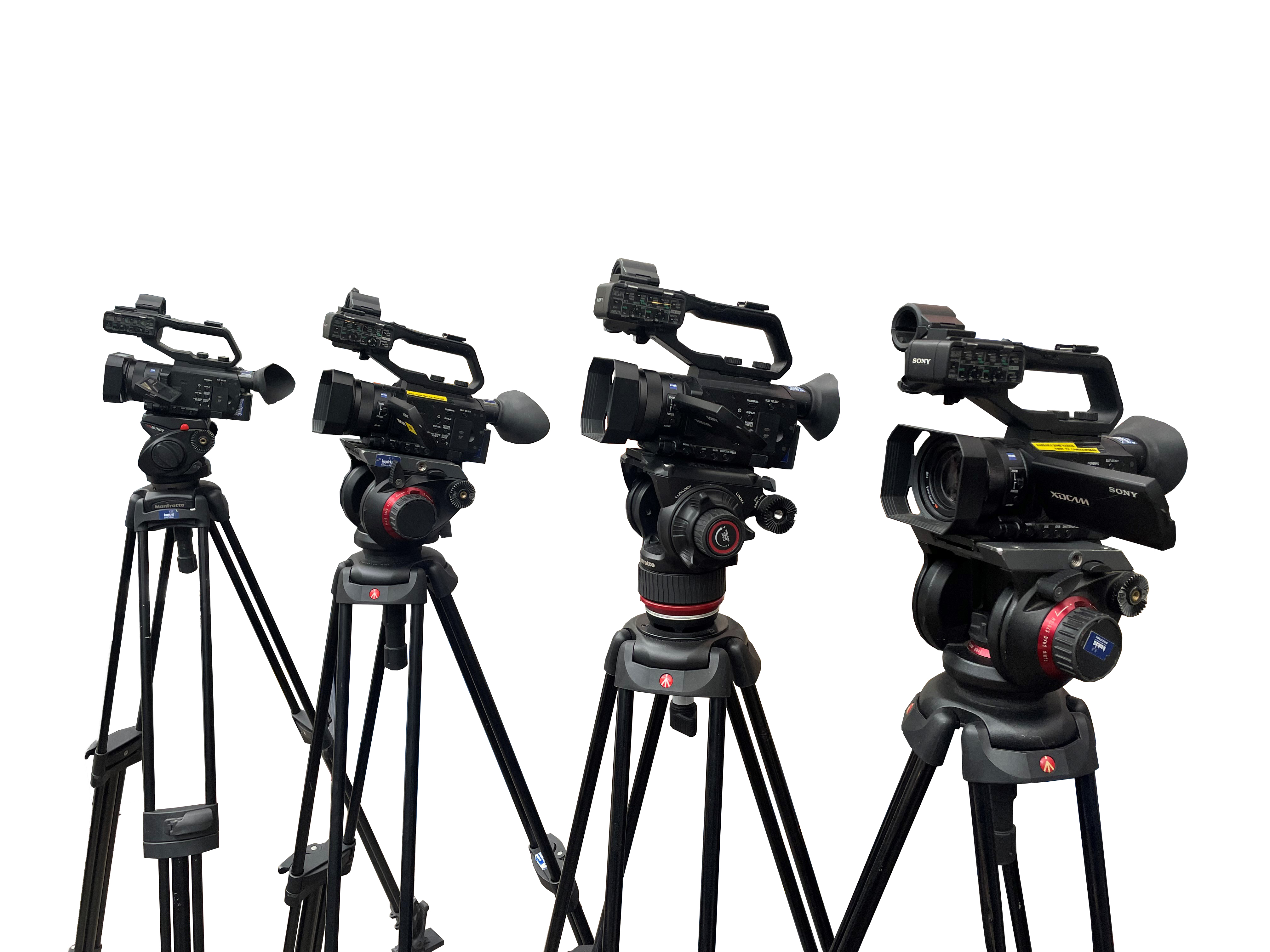

PXW70 Specifications

  • Image Sensor: 1.0-type (13.2 x 8.8 mm) Exmor R CMOS sensor
  • Effective Resolution: Approx. 14.2 M pixels
  • Lens: 12x Optical zoom
    18x Clear Image Zoom (4K)
  • Aperture: f/2.8 - f/4.5
  • Focal Length: 9.3 to 111.6mm (Equivalent to 29 to 348mm on 16:9 35mm lens)
  • Media Card Slots: 2 x SDXC
  • 4:2:0 Recording: XAVC QFHD MPEG-4 AVC/H.264
    XAVC Proxy MPEG-4 AVC/H.264
  • 4:2:2 Recording: XAVC HD MPEG-4 AVC/H.264
  • AVCHD Recording: MPEG-4 AVC/H.264 AVCHD 2.0
  • Outputs: 1 x 3G-SDI
    1 x HDMI
    1 x Multi/Micro USB
  • Audio: 2 x XLR 3-pin, female
    1 x 3.5 mm Stereo mini jack with plug-in power
  • ND Filters: 1/4 ND, 1/16 ND, 1/64 ND
  • Display: 3.5" LCD
  • Dimensions: 120.7 × 103.5 × 274.3 mm
  • Weight: 1.4 kg (Including camera body, XLR handle unit, NP-FV70 battery, lens hood, and large eyecup)
