Four Camera Newtek NDI PTZ and Tricaster Mini-S kit
A camera kit including 4 PTZ cameras with controller, tripods and a Vizrt Tricaster Mini-S
Supplied with:
Compatible with:
4 x Newtek PTZ1 cameras with Tripods
Tricaster Mini-S Vision Mixer
Tricaster Control Surface
2 x 24" Benq Monitors
Skaarhoj PTZ controller
8 channel POE network switch

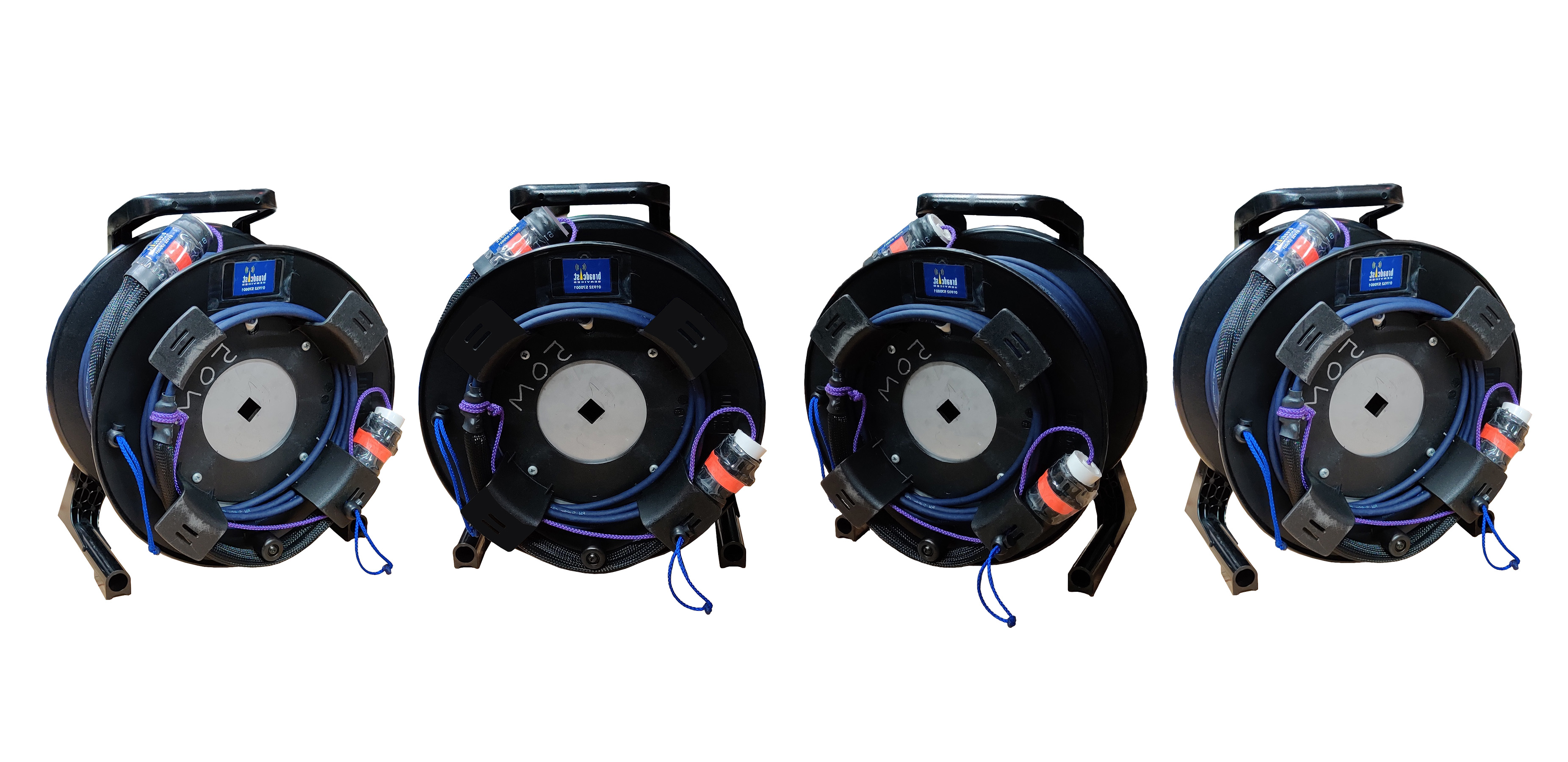

4 x 50m Ethernet cable reels
Four Camera Newtek NDI PTZ and Tricaster Mini-S kit
for hire
Tricaster MiniS, Tricaster Mini-s, Newtek PTZ1, VIZRT PTZ1, 4 camera PTZ kit
This kit includes 4 PTZ cameras and a Tricaster mini-S. This Tricaster has 8 NDI inputs, 3 mix outputs and can stream to 2 different destinations. If SDI inputs or outputs are required, we can supply NDI to SDI or HDMI converters at additional cost.
Cameras can be controlled via the supplied Skaarhoj PTZ controller or from the Newtek control surface
A camera kit including 4 PTZ cameras with controller, tripods and a Vizrt Tricaster Mini-S
Specifications
Specifications
- Tricaster Mini-S
- Video Inputs: 8 x NDI
- Video Outputs: 4 x NDI (1 in UHD mode)
- Streaming Outputs: 2
- Maximum session resolution: 2160 @60fps
- Mix Effects buses: 4
- Media Players: 2 x DDR, 1 x Graphics, 1 x Audio, 5 x animation buffers, 10 x graphic buffers
- Recording: 4 x Quicktime (Native NDI codec) recorders
- PTZ1 Camera:
- Video Output: NDI®|HX | HDMI 2.0 | 3G-SDI
- Video Formats: 1080p: 60, 59.94, 50, 30, 29.97, 25 1080i: 59.94, 50 720p: 60, 59.94, 50, 25
- Lens: 20x Optical Zoom
- Shutter Speed: 1/1 to 1/10,000 sec
- Panning Angle: -170° to +170°
- Tilting Angle: -30° to +90°
- Audio Input: 3.5mm stereo audio input (line)
- Audio Output: NDI
- Tally: NDI
- Dimensions: 175 x 183 x 183 mm
- Weight: 1.8kg
