• Video Input: 8 x total IP video inputs via NDI®, resolution-independent  2160p 59.94, 50, 29.97, 25 1080p: 59.94, 50, 29.97, 25 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 SD: 59.94, 50, 25

• PTZ: Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via NDI with integrated controls and preset system.
• Network Video Output: IP video output via NDI, optionally configurable for: 4 x independent video mix outputs 1 x UHD video mix output
• Stream Output: 2 x resolution-independent streaming video outputs, independently configurable and controllable, with simultaneous stream archive
• DSK Channels: 2 x DSK channels
• Media: 4 x media players: 2 x DDR 1X GFX 1 x Sound 15 x media buffers: 5 x animation buffers including GIF support 10 x graphic buffers
• Virtual Sets: Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
• Keyers: Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses 8 x input keyers 2 x media player keyers 4 x M/E keyers15 x buffer keyers
• COMPs: Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences 16 x configurable COMP presets per bus
• DataLink: Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
• Supported Media File Formats: Import, store, and play back multimedia files, with optional transcoding, including: Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more

• Audio Mixing: Integrated multi-channel audio mixer with support for stereo audio, and DSPs
• Mix/Effect Buses (M/E): 4 x M/E buses supporting video re-entry 1 x Mix/Effect channel per bus with support for up to 2 sources 2 x KEY layers per bus
• Data Link: Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
• Macros:Record, store, edit and automate commands and user-configured operation sequences- Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and Xkeys® buttons or GPI triggers- Attach to internal events and state changes, including audio, media playback, tally and specific switcher actionsSupports control via web-based interface
• Recording: 4 x recording channels from either NDI®inputs or Mix outputs Records and retains alpha channel data 4 x QuickTime®archival video recorders (Native NDI Codec for recording)
• Signal Monitoring: Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
• Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
• Processing: Video: YCbCr + Alpha color space, using 4:2:2:4Audio: Floating Point, 96 kHz
• Latency: Processing Latency through software: ~1.0-1.5 frames
• Tally: Support for network tally via NDI®
• MIDI: Support for standard MIDI protocol enabling third-party device control

‍

Physical

• Dimensions: (WxDxH)[2]87 x 223 x 202 mm (3.43 x 8.78 x 7.95 inches)

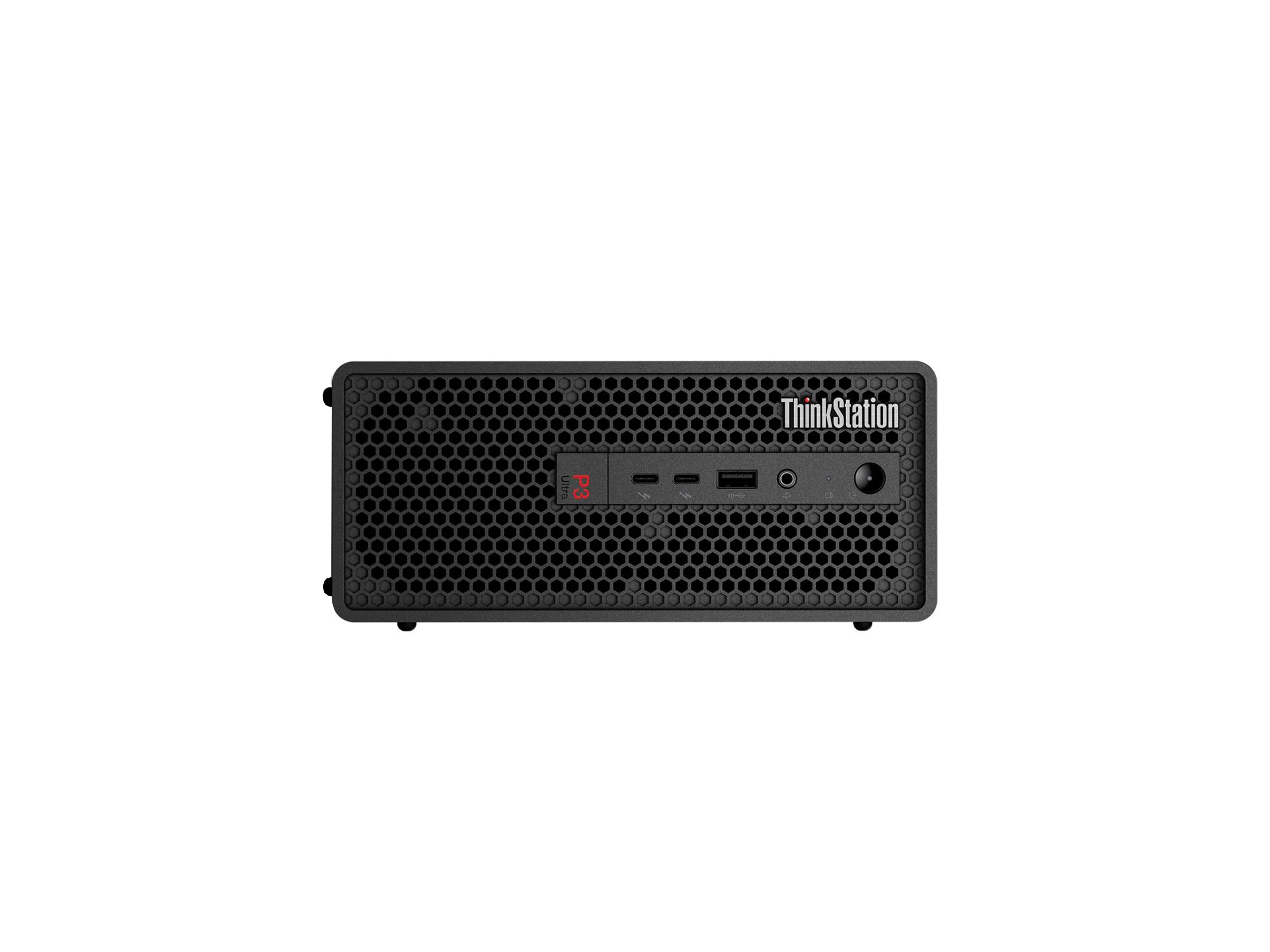

• Front Ports: 2x Thunderbolt™ 4 1x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm)

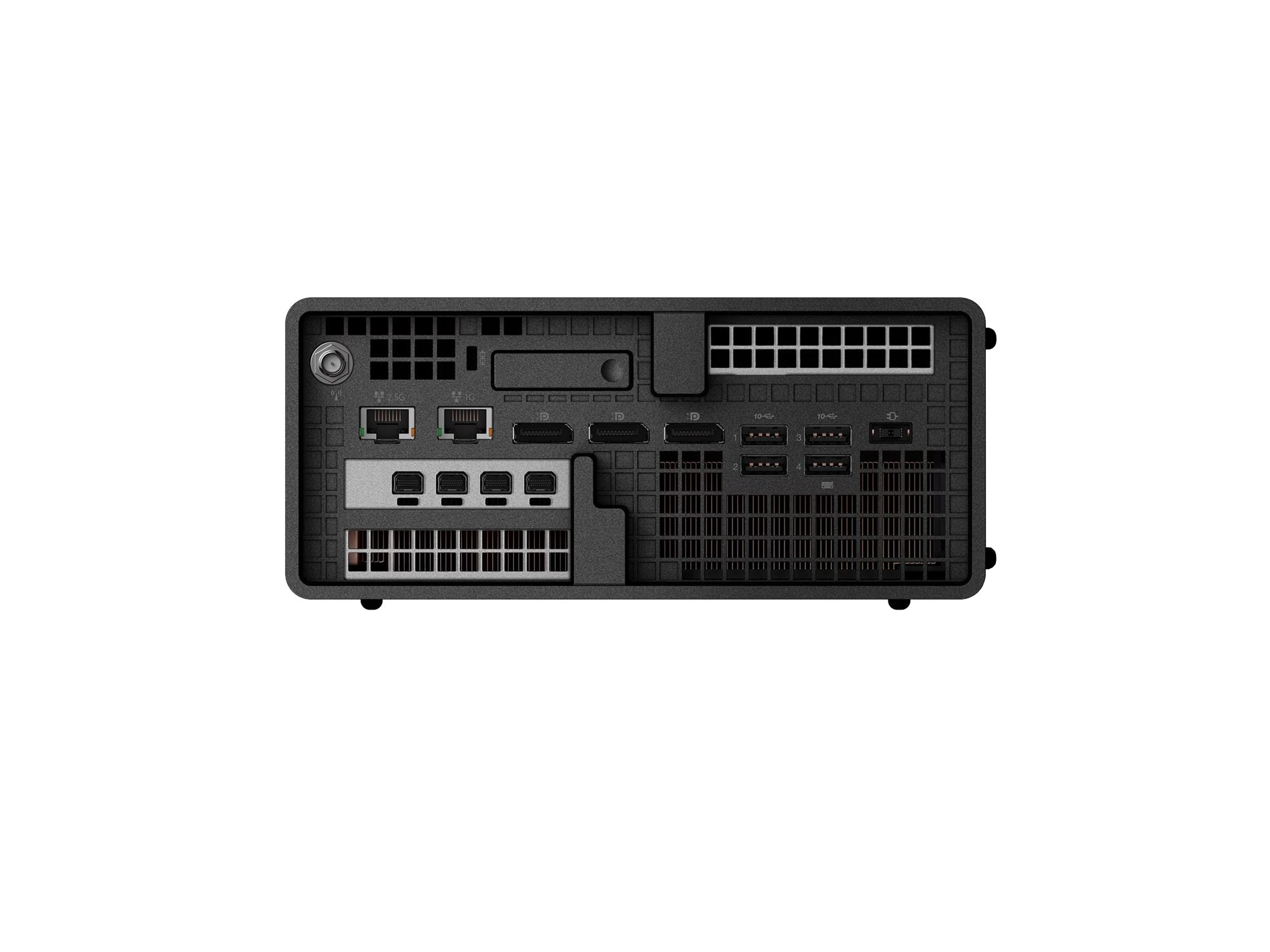

• Rear Ports: 4x USB-A (USB 10Gbps / USB 3.2 Gen 2) 3x DisplayPort™ 1.2 1x Ethernet (2.5GbE RJ-45) 1x Ethernet (GbE RJ-45)
• Weight: 3.6 kg

‍
